DRECKSHAGE (Germany) EcoStretchRoll Spreader Rollers

플라스틱 사업의 중요분야인 Sheet 및 Film 생산에 있어 불량의 주된
원인중 하나인 원단의 주름을 효과적으로 제거 할 수 있는 독일 DRECKSHAGE사의
EcoStretchRoll Spreader Rollers를 고객여러분께 제공해 드립니다.

Quantum leap in web spreading

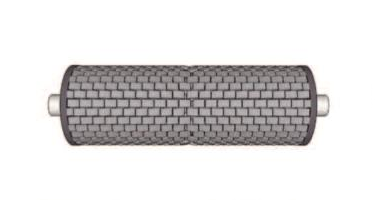

Highly efficient EcoStretchRoll spreader rollers The EcoStretchRoll (ESR) is an innovative spreader roller developed by the inventor of brush spreader rollers. Using patented precision rubber rings with individual spreading elements, the ESR enables improved and precise spreading without the need to use an engine for drive or adjusting the roller. Each rubber ring consists of independent spreading elements that react quickly to fabric pressure. The controlled movement towards the edge of the roller is achieved by a protected moulding of the spreader elements.

Advantages at a glance:
- strong spreading capacity - vibration-absorbing - marking-free - no seperate drive needed - nearly wear-free - FDA compliant - cost-efficient


Model overview
ESR-ST (Sensitive Treatment)
Spreads all webs > 4 µm or > 8 gr/m²
  • ESR-ST 40/60
    outer diameter: 60 mm
    speed: up to 300 m/min.
  • ESR-ST 80/110
    outer diameter: 110 mm
    Speed: up to 700 m/min.
  • ESR-ST 100/130
    outer diameter: 130 mm
    speed: up to 800 m/min.
    		•
  • ESR-ST 120/150
    outer diameter: 150 mm
    Speed: up to 1.000 m/min.
    		•

    Advantages of the ESR spreader rollers
  • Principle of operation
    1.400-2.800 independently operating individual spreader
    elements per meter of roll length.
    		•
  • Contact surface
    Slightly curved, large contact surfaces ensure marking-free
    guidance without relative movement.
    		•
  • Wrap angle
    Full functionality at 8-180º wrap angle.
    		•
  • Web Tension
    Between 10 an 750 N/mtr.
    roll length.
    		•
  • Web thickness
    Spreads any material thickness > 4 µm and > 8 gr/m².
    		•
  • Multiple cutting
    Applicable for multiple cuttings.
    		•
  • Web speed
    The EcoStretchRoll can be used up to 1.000 m/min. At the same time, it
    has a vibration-damping effect and runs absoultely quietly.
  • Variants
    The EcoStretchRoll is available in four diameters (60, 110, 130, 150 mm)
    and can be produced to customer specifications up to a maximum of 7.000 mm.
    		•
  • Material properties
    Wear-resistant, temperature-and ozone-resistant and FDA-approval on request.
    		•
  • Roll body
    Lightweight aluminium roll tubes with special geometry for high bending stiffness. Fast response due to low start-up weights and low inertia.
  • Assembly
    Each EcoStretchRoll is produced according to customer specifications and delivered ready for installation.
    It is ready for immediate use without external drive or adjustment.
    		•
